MERV 14 Air Filter Material & Media

A MERV 14 filter meets ASHRAE 52.2 efficiency standards, capturing at least 75% of particles in the 0.3–1.0 micron range. ECOairflow's MERV 14 powered filters achieve this rating with a dramatically lower pressure drop (0.13–0.37 in.w.c.) than traditional bag filters, reducing HVAC fan energy while meeting ASHRAE 62.1, 90.1, and 241 compliance requirements.

For asthma sufferers, a MERV 14 or higher filter is strongly recommended. ECOairflow's EPT-based filters capture allergens, dust, pollen, mold spores, fine particulate matter (PM2.5), and ultrafine particles (PM0.1) down to 0.001 microns. The UL 2998 zero-ozone certification is especially important — ozone can aggravate asthma symptoms, making ECOairflow's filters suitable for sensitive occupied spaces.

Unlike mechanical filters that block particles by physical interception, EPT creates a polarized electromagnetic field across the glass-fiber mesh. Each fiber acts as a magnet, attracting particles through electrostatic forces. This captures particles as small as 0.001 microns with minimal resistance to airflow, maintaining a nearly constant pressure drop throughout the pad's entire service life.

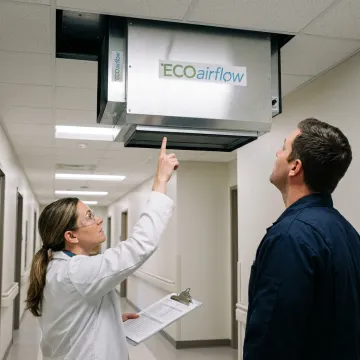

The M-Series Hybrid E.A.C. (Model 2300 M-Series) is specifically ASHRAE 170 and CSA Z317.2 compliant. The MERV 14A configuration is approved for hospital emergency rooms and invasive procedure rooms, while the MERV 16A configuration meets requirements for operating rooms and high-acuity procedural spaces. It is also ASHRAE 241 (2023) compliant for infection-risk mitigation.

Replacement frequency depends on application load. In commercial settings, pads are typically replaced every 3–6 months. In lower-load environments, pad life extends significantly. Because the aluminum frame is permanent, only the glass-fiber mesh pad requires replacement — eliminating the recurring cartridge waste stream associated with traditional pleated or bag filter systems. ECOairflow offers an email reminder subscription service.

The standard Dynamo Model 2300 is designed for powered operation. The M-Series Hybrid model, however, uniquely maintains its full rated MERV performance whether powered, unpowered, or tested under ASHRAE Appendix J conditioning — a critical requirement for medical treatment rooms where filtration must remain effective even during power interruptions, as confirmed by ASHRAE 52.2 Appendix J certification.
